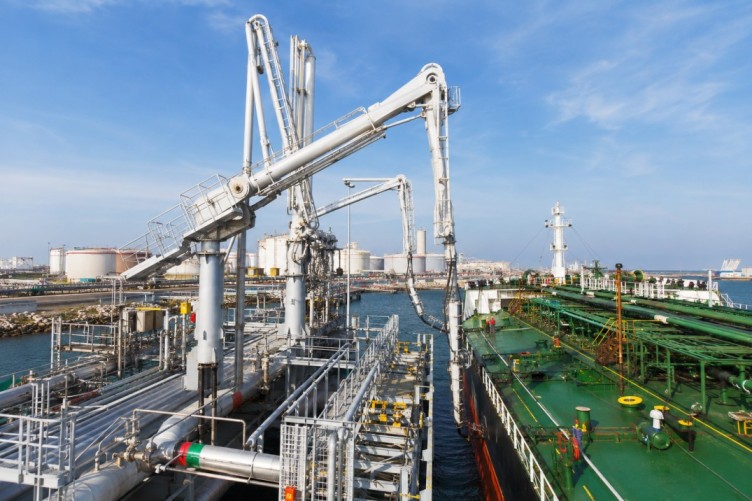

Why Marine Loading Arms Installation Is Critical for Safe and Efficient Port Ops

Marine loading arms are essential components of modern port infrastructure, playing a vital role in ensuring safe, efficient, and reliable product transfer operations. These systems serve as the critical interface between onshore terminals and visiting vessels, facilitating the transfer of crude oil, LNG, chemicals, and refined products under demanding operating conditions. Installing a marine loading arm involves multiple engineering disciplines. Civil, mechanical, electrical, instrumentation, and marine specialists all work together to ensure the system performs safely and reliably. The quality of engineering decisions and installation practices directly influences terminal safety, operational efficiency, and equipment reliability throughout the system's typical 20- to 30-year service life.

​

Understanding the Installation Ecosystem

​

Foundation Engineering and Structural Considerations

Before the first component reaches the jetty, months of engineering work have already been completed. Loading arms must be engineered to withstand dynamic forces arising from vessel movements, wind, tides, and temperature fluctuations. Although static loads typically range from 10 to 50 tonnes, dynamic forces exerted by vessels can exceed 100 tonnes. Foundations typically utilize deep piles exceeding 20 metres in length and are designed to accommodate seismic factors ranging from 1.5 to 2.0, depending on local conditions and regulatory requirements

Engineers must consider berthing loads, tidal forces, and jetty vibrations to ensure long-term structural stability. In some cases, structural engineers must design new structures while accommodating existing foundation constraints. When replacing existing equipment, marine loading arms must be carefully engineered to suit the load-bearing capacity of existing foundations and supporting structures.

​

Precision Assembly and Alignment

The stage of mechanical erection requires great attention to detail. Marine loading arms are typically delivered as individual components or pre-assembled modules, depending on transportation limitations and site conditions. Offshore and remote terminal projects often present additional logistical challenges due to restricted access and limited lifting equipment. During one offshore terminal installation, the project team utilized a small pontoon equipped with cranes instead of jack-up barges due to adverse sea conditions and restricted site accessibility.

​

Tasks of critical assembly include:

• Bolt tensioning: High-tensile steel bolts (typically Class 8.8 or higher) require precise torque application—usually between 500 and 1000 Nm—monitored using ultrasonic measurement methods.

• Flange sealing: Gasket surfaces must be completely free of contamination, as even minor traces can create pathways for high-pressure leaks when the system is pressurized.

• Laser alignment: Precision laser systems maintain flange parallelism within a 1 mm tolerance, significantly reducing hydraulic shock and vibration during transfer operations.

• Counterweight balancing: Correctly balancing the counterweight system helps the loading arm move efficiently, minimizes wear on mechanical components, and supports safe, reliable product transfer.

​

Hydraulic and Automation Integration

Modern marine loading arm systems incorporate sophisticated hydraulic and automation technologies that require meticulous installation and commissioning procedures. Cylinders built to industry specifications are integrated through manifold systems that control arm movement and enable emergency operations. Electrical installations must meet hazardous area standards for marine environments, and integrated PLC and SCADA systems enable automated control.​

The growing adoption of smart marine loading arms adds another layer of complexity to the installation process. Seal testing, swivel joint wear monitoring, and vibration sensors are increasingly standard features in modern equipment installations. These technologies enable predictive maintenance by allowing components to be replaced based on actual condition and performance data rather than predetermined maintenance intervals.

Why Proper Marine Loading Arm Installation Matters

Improper installation can lead to:

• Product leakage

• Environmental incidents

• Emergency shutdowns

• Premature equipment failure

• Increased maintenance costs

• Reduced terminal productivity

Proper installation ensures long-term reliability, regulatory compliance, and safe product transfer operations.

​

Overcoming Installation Challenges in Demanding Environments

​

Remote Location Constraints

Offshore and remote terminal projects present complex logistical challenges that require careful planning, specialized equipment, and innovative installation strategies.  During the COVID-19 pandemic, one installation site overcame travel restrictions by implementing remote management solutions. By leveraging live video feeds transmitted to a dedicated control center, commissioning engineers located thousands of kilometers away successfully supervised the installation and commissioning activities remotely.

Similarly, remote island terminals often lack heavy lifting equipment and specialized marine construction resources, necessitating innovative logistical solutions. For example, in the Bahamas, the installation crew delivered fully assembled loading arms instead of separate components, minimizing the need for heavy lifting at sea.

​

Environmental Considerations

Marine environments expose loading systems to highly aggressive conditions, including saltwater corrosion, hydrocarbon exposure, and extreme temperature variations.

Every marine project faces different environmental challenges. Wind, tides, humidity, and wave movement all influence how safely equipment can be installed. Engineers carefully plan installation activities around tidal windows.

Safety Compliance and Regulatory Alignment

The installation of marine loading arms is governed by stringent international safety standards and industry guidelines, established by regulatory bodies such as the International Maritime Organization and the Oil Companies International Marine Forum. The OCIMF Design and Construction Specification for Marine Loading Arms remains the primary reference document governing operating envelopes, transfer requirements, manifold spacing, jetty piping layouts, and equipment design.

​

The following are key safety features that are tested during the installation process:

​

• Emergency Release Systems (ERS): These must disconnect the arm from the valve within seconds if the vessel moves outside the operational envelope.

• Grounding systems: Product movement generates static electricity, requiring effective grounding of both the arm and vessel to prevent explosions.

• Double-block-and-bleed isolation: This feature ensures secure product containment during disconnection by providing two barriers and a bleed path.

​

Testing, Commissioning, and Operational Readiness

​

Comprehensive Validation Procedures

Before entering commercial service, every newly installed marine loading arm undergoes comprehensive testing and commissioning to verify its safety, performance, and operational reliability. This includes:

​

• Pressure testing via pneumatic method: Normally carried out at 1.5 times rated pressure.

• Leak detection testing: Critical joints typically require leakage rates below 0.1 ml/min.

• Functional envelope test: Utilizing load cells for testing of the full operating range of the arm.

• Emergency Release System testing: Simulates vessel drift scenarios to verify rapid and safe disconnection.

​

The Chevron loading arm upgrade project illustrated the importance of phased commissioning strategies. By commissioning one berth at a time, the project team captured lessons from each phase to refine future installations, optimize workflows, and shorten the overall project schedule. The project achieved over 87,000 incident-free man-hours.

Brownfield installation projects often require field modifications because existing pipework, foundations, or jetty structures rarely match original engineering drawings exactly.

​

Human Factors and Training Considerations

Technical proficiency alone is insufficient; it must be supported by comprehensive operator training and operational preparedness; it must be complemented by thorough operational preparedness. Personnel responsible for operating and maintaining marine loading arms must demonstrate their competence through simulation-based assessments. Facilities that adopt a structured training and preparedness approach generally achieve smoother startups and fewer operational disruptions.​

It is essential to transfer knowledge from the installation teams to the operating team. Hands-on training in system performance under load, along with practical instruction on installation details—especially those requiring unique alignment not shown in engineering drawings—helps minimize early operational errors.

​

Documentation and Lifecycle Support

​

As-Built Records and Maintenance Planning

The documentation prepared during installation becomes an essential reference throughout the equipment's service life, helping maintenance teams troubleshoot issues and plan future inspections. Essential documentation includes as-built drawings, torque verification records, pressure test certificates, seal traceability documentation, calibration certificates, and commissioning reports.

Documentation packages should also include emergency response procedures, maintenance maps, lubrication schedules, and troubleshooting guides.  ​

Predictive Maintenance Integration

Contemporary installation systems are increasingly leveraging digital testing and monitoring technologies to enhance reliability. These technologies encompass laser alignment verification, digital torque measurement, hydraulic pressure monitoring, and electronic commissioning validation. These measures ensure consistent processes and reliable installation records, especially important for large expansion terminals with multiple loading arms.

As marine terminals continue to evolve, the installation process lays the critical foundation for safe, efficient, and environmentally responsible operations. Installation expertise from professionals like those at Tekzone combines engineering accuracy with operational preparedness to ensure loading arm efficiency and maximum terminal output.

​

FAQs

​

Q1. What is the average timeframe required for the installation of marine loading arm systems?

Installation typically takes two to four weeks, from equipment delivery to completion. However, in remote or offshore locations, logistical challenges and weather conditions can extend the installation timeline.

​

Q2. Is it possible to install new marine loading arms on the existing jetties?

Yes, but a prior structural survey is mandatory. Contemporary loading arms are heavier and can generate greater forces during emergency release, often necessitating foundation reinforcement. In some instances, lighter arm variants can be installed without requiring additional pile driving or foundation modifications.

​

Q3. What is the operational life span of a marine loading arm that has been installed correctly?

If properly designed, a loading arm should have a lifespan of 20 to 30 years, with key components—such as seals and swivel joint internals—requiring replacement every 5 to 10 years as part of routine maintenance.

​

Q4. Which safety systems are evaluated for effectiveness during the installation process?

ERS (emergency release systems), which separate and seal the arm within seconds; grounding systems to prevent static discharges; and double-block-and-bleed isolation systems are all extensively tested before installation is complete.

​

Q5. How do environmental conditions impact the installation process?

High wind speeds prohibit all crane lifting operations. Humidity can impact both the coating process and seal installation. Temperature fluctuations can influence fluid bleeding processes. Tides affect the positioning of the crane barge.

​

Conclusion

Successful marine loading arm installation depends on careful planning, precise engineering, and strict quality control. When every stage—from foundation preparation to commissioning—is executed correctly, terminals benefit from safer operations, improved reliability, and reduced lifecycle costs. With extensive experience in marine loading arm installation and terminal infrastructure projects, Tekzone delivers engineering expertise and practical solutions that help marine facilities achieve these outcomes.
